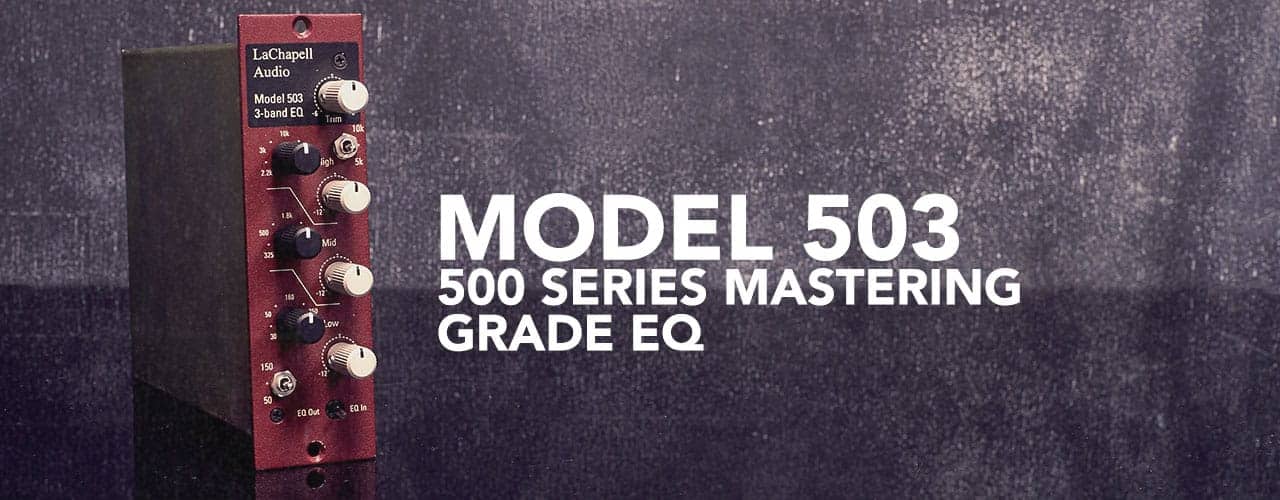

503 500 SERIES 3-BAND EQ
Deprecated: Creation of dynamic property acf_vc_helper::$construct is deprecated in /home/digitalaudio/lachapellaudio.com/wp-content/plugins/acf-vc-integrator/inc/acf_vc_helper.php on line 6
Deprecated: Creation of dynamic property acf_vc_helper::$construct is deprecated in /home/digitalaudio/lachapellaudio.com/wp-content/plugins/acf-vc-integrator/inc/acf_vc_helper.php on line 6
Deprecated: Creation of dynamic property acf_vc_helper::$construct is deprecated in /home/digitalaudio/lachapellaudio.com/wp-content/plugins/acf-vc-integrator/inc/acf_vc_helper.php on line 6
EQ’s come in all flavors, but sometimes you need a near colorless equalizer, and the 503 is it. The LaChapell 503 500 series EQ sports a very low distortion signature with minimal phase deviation. Perfect for tracking, mixing, or mastering the 503 is extremely clear and transparent. With a 24dB range on each band plus selectable frequency high and low pass filters, the 503 is an incredible tone shaper.
Use when tracking to capture the essence of your source, or on mix down to make tracks sit perfectly in the mix. Because there is little phase interaction the LaChapell 503 can be used subtly or aggressively.
503 PRODUCT FEATURES
MASTERING QUALITY EQ
The 503 is a super quiet and transparent EQ that has been meticulously designed to minimize phase artifacts. It is a great complement to any studio recording chain, mix down or marstering process.
3-BAND EQ
The three band EQ with a +/- 12 dBu cut or boost range provides plenty of power for subtle or drastic tone shaping.
HIGH AND LOW PASS FILTERS
Switchable filters with two ranges per filter. The HPF offers 50 Hz and 150 Hz options. The LPF filters at 5K or 10K.
WIDE FREQUENCY RESPONSE
The 503 features an incredible range of 10Hz to 50Khz. This ensures adjustments to the edges of the audible spectrum are not cut off prematurely.
503 PRODUCT SPECS
| NOISE FLOOR | -95dB |
| THD+N | 0.012% (@ +4 output) |
| FREQUENCY RESPONSE | 10Hz to 50KHz (flat) |
| CUT / BOOST RANGE | +/- 12dBu |
| MAXIMUM INPUT LEVEL | ≥25dB |
| INPUT IMPEDANCE | 48KΩ |
| INPUT / OUTPUT TYPE | TRANSFORMERLESS |
503 USER GUIDE AND DOWNLOADS
503 REVIEWS AND QUOTES
“So, to the point! Do I like this EQ? yes I do. I love Scott’s work and the 503 is no exception to his talent! The LaChapell Audio is another awesome tool any engineer could use in a heartbeat. This is not a surgical EQ, but isn’t heavy-handed with coloration, but it sure is smoking sweet! A big double thumbs up from the pan man EQ!” – Ronin Chris Murphy
